Automatic Vape Cartridge Filling Machine

The Most Advanced Automatic Vape Cartridge Filling System

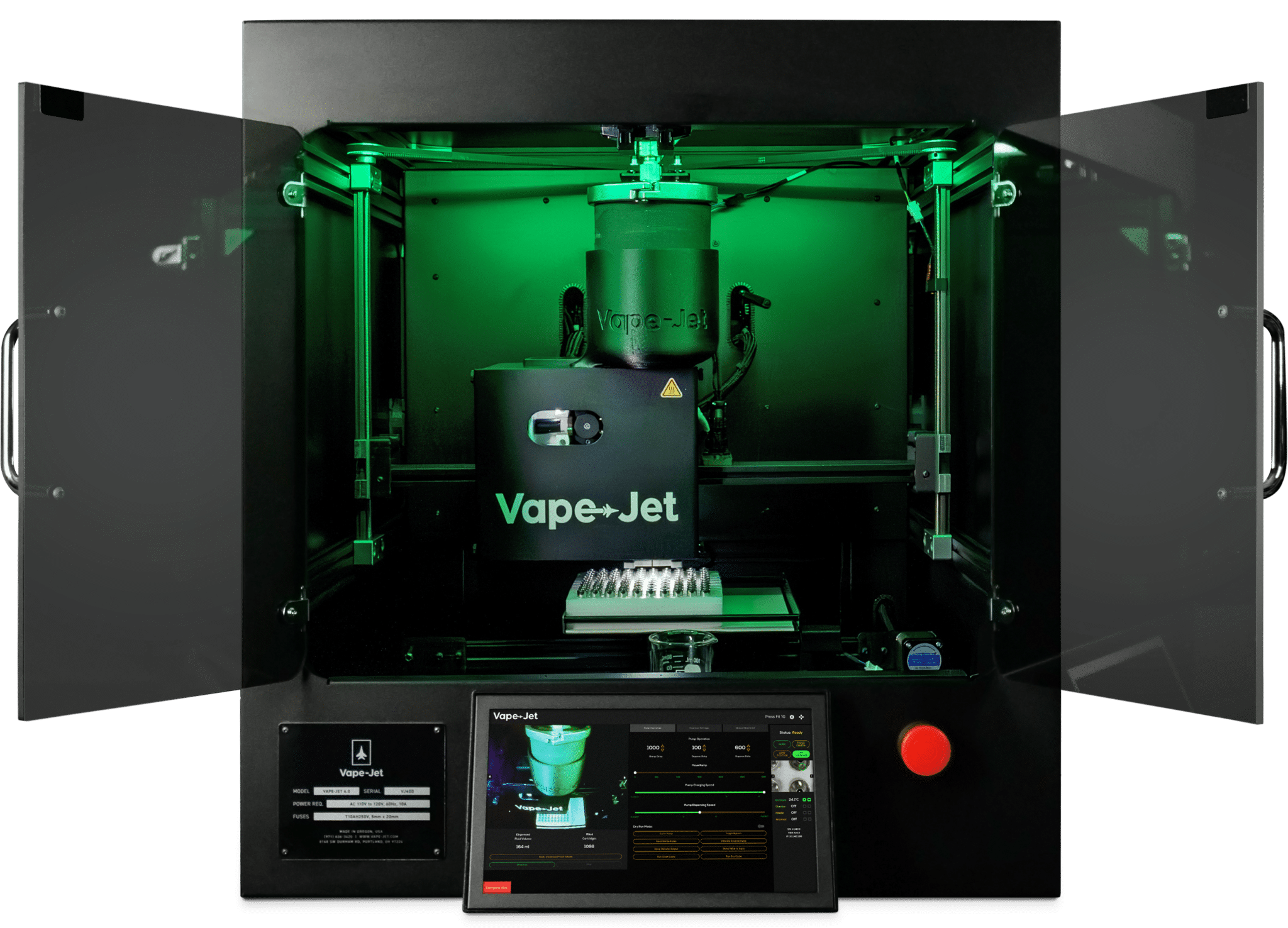

The Vape-Jet merges a pharmaceutical grade fluid handling system with advanced machine vision alignment. Able to automatically fill over 500 vape cartridges per hour, with minimal labor input.

Software driven design allows for precise tuning on every aspect of vape cartridge filling. Our expert team of in-house engineers are available for support via live-chat, phone, and email. Vape-Jet offers the lowest operating cost of all cartridge filling solutions.

Innovative Hardware

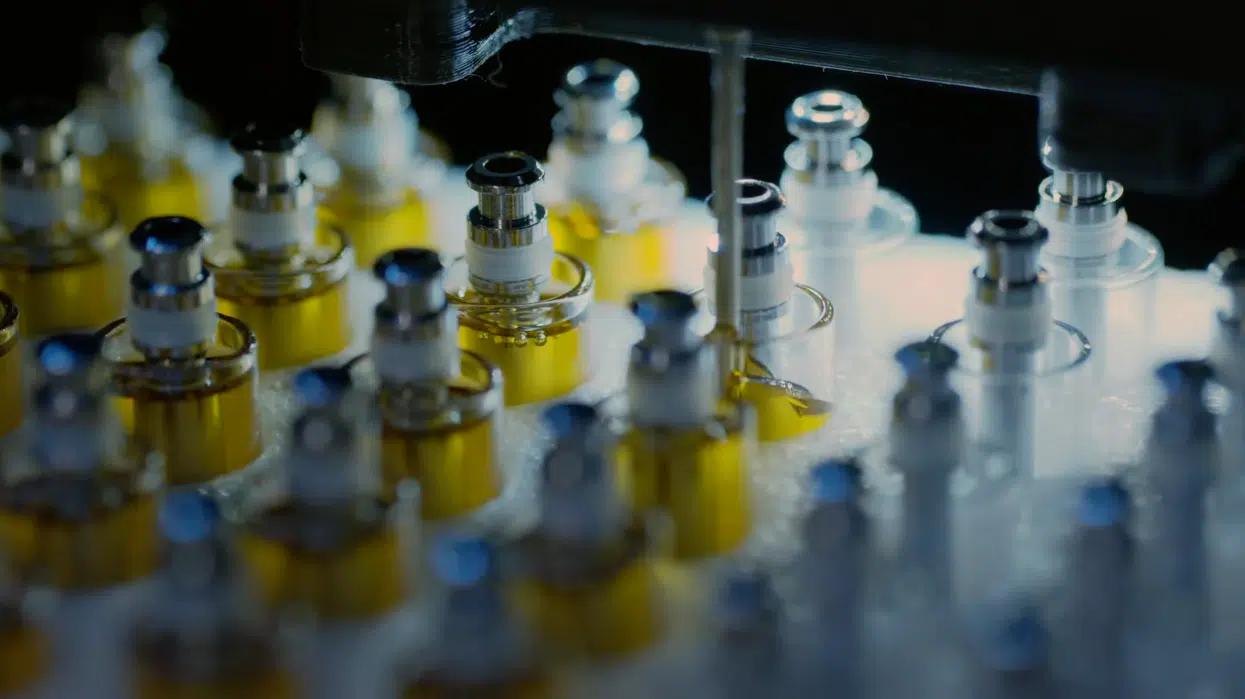

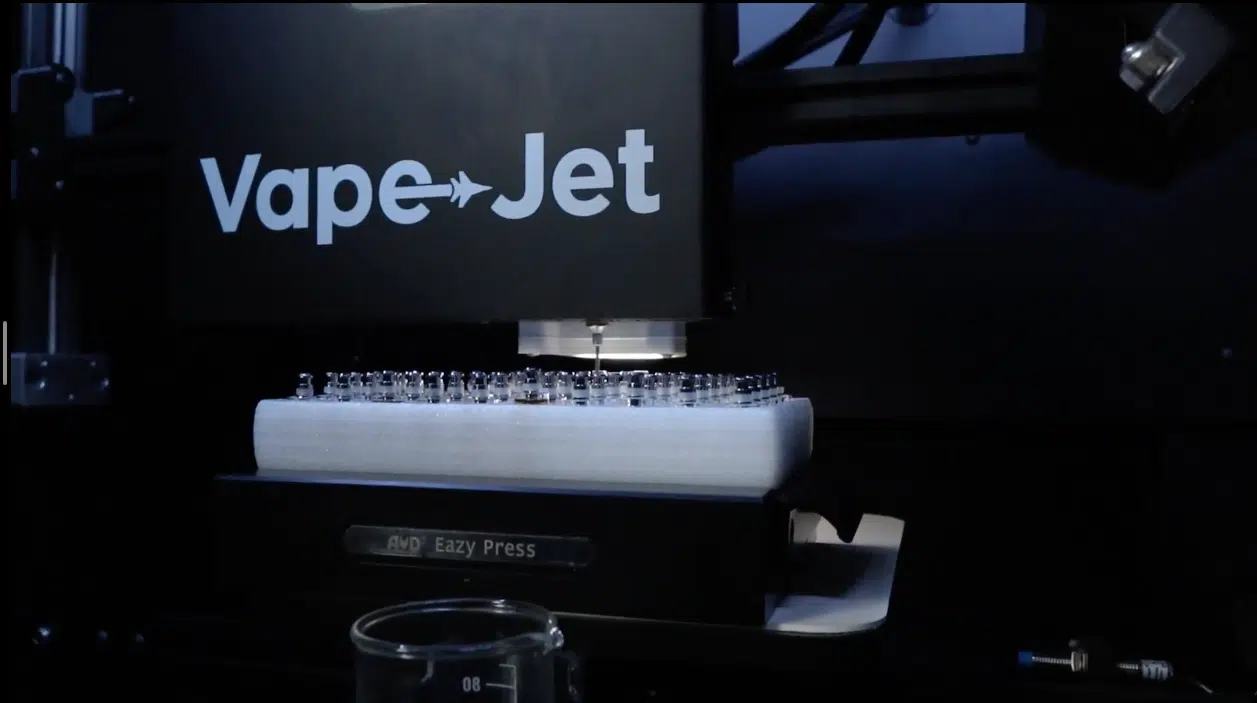

Machine vision alignment system allows you to fill cartridges directly in shipping trays, without the need to transfer to a jig for alignment. Simply unbox the cartridges, place on the Vape-Jet, and click the dispense button. The Vape-Jet will align to every cartridge before filling, without any operator intervention.

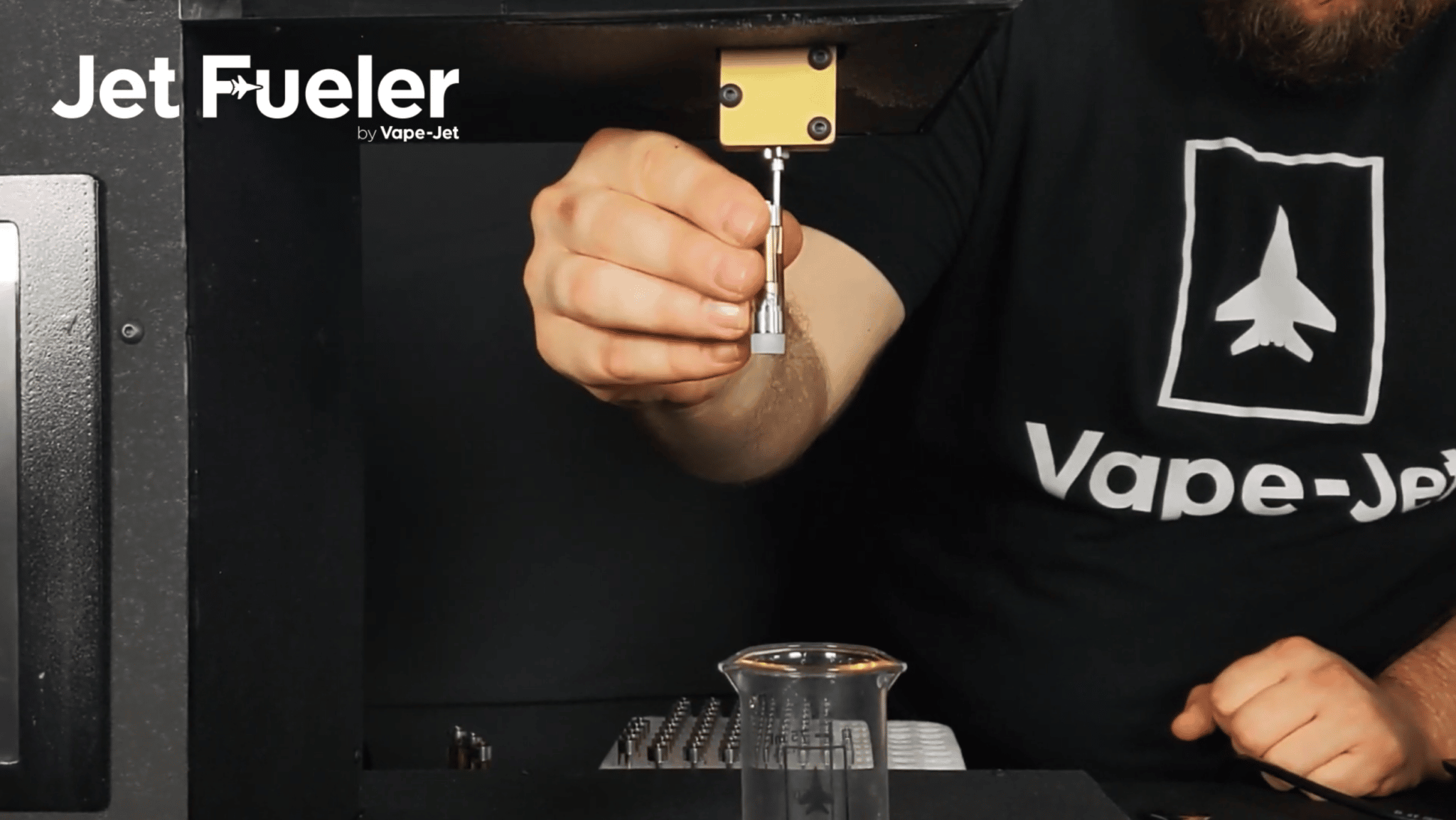

Our state-of-the-art laboratory calibrated and certified pump can achieve the fastest possible dispense times. Programmable to dispense any volume from .001 ml to 5 ml. Your vape cartridges will be filled accurately and reliably.

Temperature control is vital to accurate automatic vape cartridge filling systems. We achieve control though three fully independent, electrically heated, proportional–integral–derivative (PID) controlled heat zones. Reservoir temperature, pump temperature, and dispensing head temperature are all independently controlled. Temperature variations during the cartridge filling process are eliminated using PID control.

The Vape-Jet system can be fully cleaned in place using your choice of solvents. Simply fill the reservoir with your cleaning solution, and run the cleaning wizard through the GUI. The full cleanup process takes less than 10 minutes, and is almost fully software automated.

The Vape-Jet fluid path is made entirely from PTFE, PCTFE, Viton, Borosilicate glass, stainless steel, and ceramic. Swagelok fitting are used for all connections, and our pumping valve is precision machined from ceramics.

The Vape-Jet is the smartest filling device on the planet. Using collected cartridge data and photos, our nueral network visually inspects for cartridge defects prior to filling, providing traceability down to individual cartridge verification.
Vape Cart Filling
Our expert team of in-house engineers are available for support via live chat from inside the GUI, phone, and email. As your company and goals evolve, we will adapt with your vision. We create customized support and maintenance packages to align with current initiatives, and future growth.

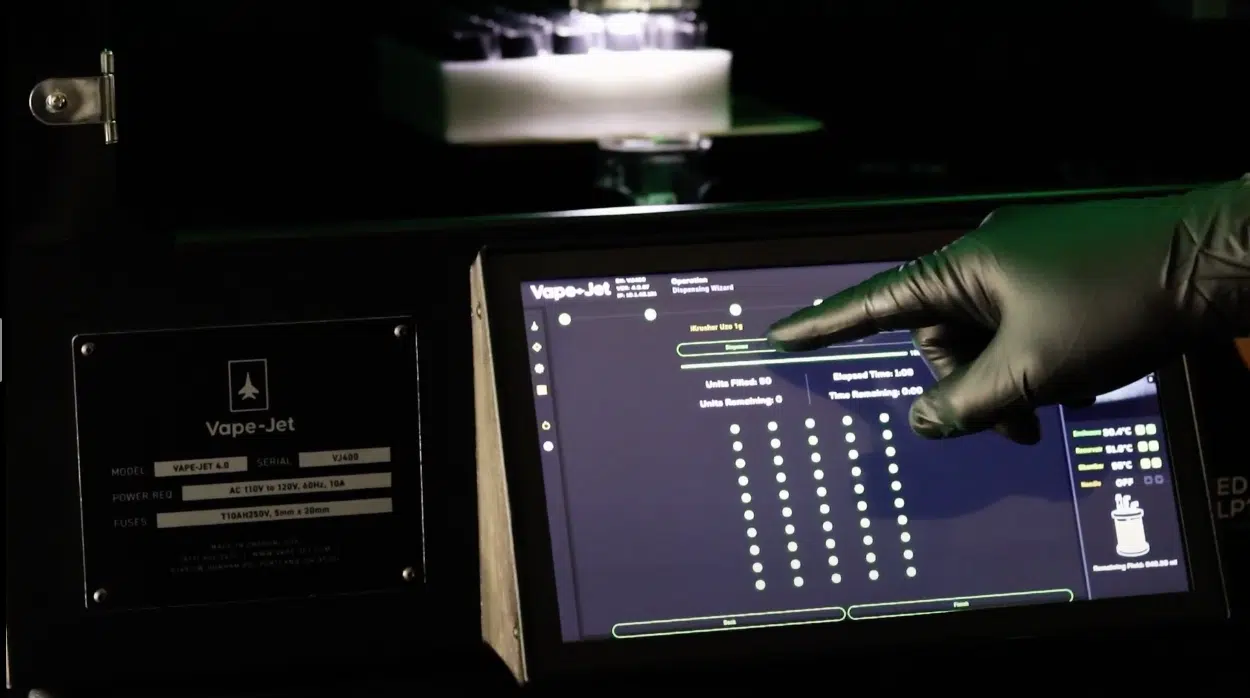

GUI of the Vape Cartridge Filler

Powerful Software

The Vape-Jet system is capable of saving 1,000 different configurations. A master of efficiency, the Vape-Jet system allows each configuration to loaded or updated as needed. Switching between different profiles is simple - and accommodates different product attributes and cartridge styles.

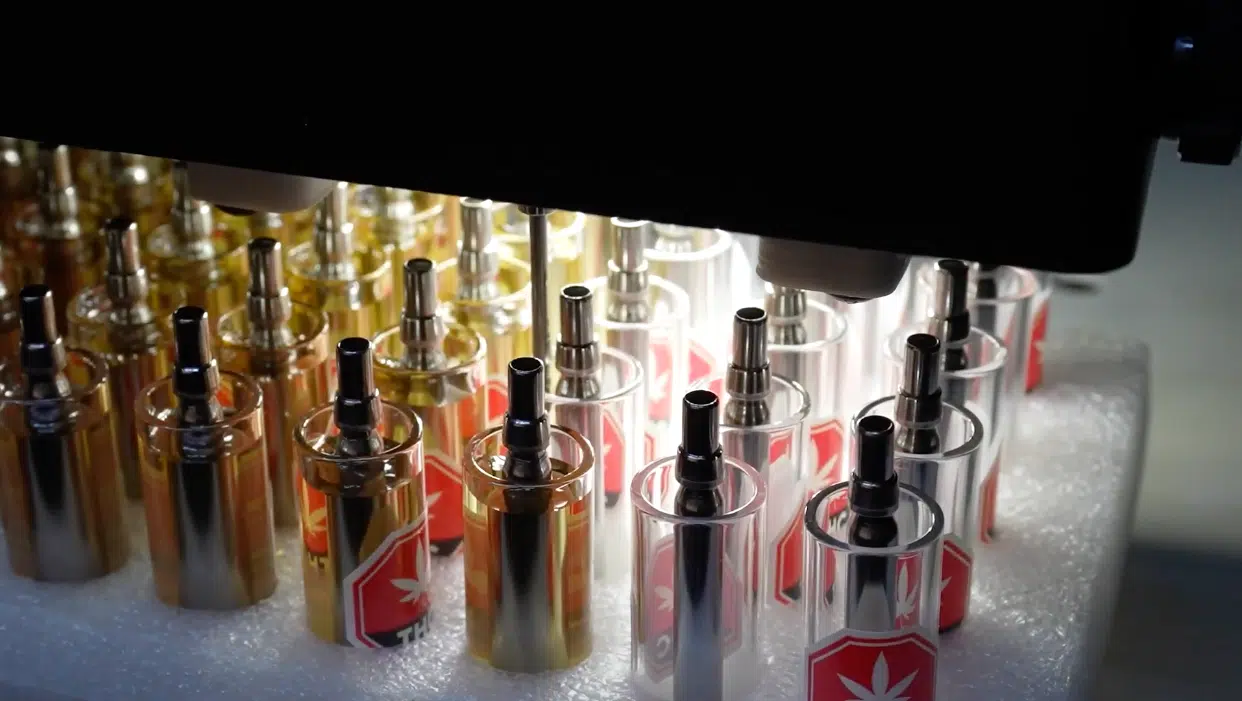

The Vape-Jet eliminates the need for costly and time consuming manual labor processes, reducing labor costs. Using our patent-pending machine vision alignment system, you can dispense directly into foam shipping trays. The machine vision system is fully software configurable, and is compatible with a wide variety of cartridges. Optional center-post avoidance identifies the optimal fill location for every cartridge, and decreases labor needed for pre-inspection/alignment.

Batch tracking and traceability are vitally important in today’s rapidly changing environment. Vape-Jet’s robust reporting and inspection capabilities are included out-of-the-box. Cartridge fill operations, and pre and post fill inspection photos can be recorded and viewed as necessary.

Help and support are built directly into the Vape-Jet interface. The GUI includes a live-chat window that connects you directly with the Vape-Jet engineer support team. At your request, the Vape-Jet support team can remotely view system configurations, operational data, and error logs to quickly troubleshoot issues.

The Vape-Jet system is operated from any internet capable device, including MacOS and Windows desktops, laptops, tablets and phones (iPhone & Android). Multiple Vape-Jet systems can be run from a single device - allowing a single operator to keep up to five systems going at full capacity.

Every aspect of the Vape-Jet is software-controlled, and improvements are available via internet updates. The Vape-Jet team regularly adds new features and custom modifications to the software system - including those received as direct customer feedback.

Pre-Inspection of cartridges is no obsolete, Vape-Jet easily detects and avoids bent center posts. The Vape-Jet can even be configured to flag and skip over cartridges that are out of specifications.
